How a Smartwatch Measures Heart Rate – PPG Sensor Technology Explained is a detailed educational flashcard that reveals the science behind one of the most popular smartwatch health-monitoring features. Have you ever wondered how a smartwatch measures your heartbeat simply by sitting on your wrist? How does a tiny optical sensor detect changes in blood flow without using needles or directly touching your heart? This colorful educational infographic explains the complete process, from green LED light entering the skin to the smartwatch calculating your heart rate in beats per minute (BPM).

What Is Heart Rate and Why Is It Important?

Heart rate refers to the number of times your heart beats in one minute. Every heartbeat pumps blood through your circulatory system, delivering oxygen and nutrients to different parts of your body. Heart rate changes naturally depending on physical activity, emotional state, body temperature, fitness level, medication, and overall health.

For most healthy adults, a typical resting heart rate ranges between 60 and 100 beats per minute. However, well-trained athletes may have lower resting heart rates because their hearts can pump blood efficiently. Children generally have faster heart rates than adults. During exercise, the heart beats faster to deliver additional oxygen to working muscles. During sleep or relaxation, the heart rate often decreases.

The smartwatch shown in this educational flashcard displays an example reading of 72 BPM, meaning the heart is beating approximately 72 times per minute. This is an illustrative reading within the typical resting range for many adults, not a universal target for everyone.

What Technology Does a Smartwatch Use to Measure Heart Rate?

Most modern smartwatches measure heart rate using a technology called Photoplethysmography (PPG). PPG is a non-invasive optical sensing technique that detects changes in blood volume within small blood vessels beneath the skin.

The optical heart rate sensor is usually located on the underside of the smartwatch, where it makes contact with the wrist. It contains light-emitting diodes (LEDs), photodiodes, and electronic components that work together to detect tiny variations in reflected light caused by blood flowing through the wrist.

Many smartwatches use green LEDs for heart rate monitoring because green light is strongly absorbed by hemoglobin in the blood, making changes in blood volume easier to detect near the skin surface. Some devices also use red or infrared wavelengths depending on their sensor design and measurement requirements.

How Does a Smartwatch Measure Heart Rate? Step-by-Step Explanation

Step 1 – Green LED Light Enters the Skin: The smartwatch activates its optical LEDs, which emit green light toward the wrist. This light penetrates the outer layers of the skin and interacts with tissue and small blood vessels beneath the surface.

Step 2 – Blood Absorbs Some of the Light: Every time the heart beats, blood volume in the small vessels changes slightly. Hemoglobin absorbs part of the emitted light. As blood volume increases and decreases with each pulse, the amount of absorbed and reflected light also changes.

Step 3 – The Photodiode Detects Reflected Light: A light-sensitive component called a photodiode captures some of the light returning from the wrist. The amount of detected light varies as blood volume changes. The photodiode converts these variations into an electrical signal that the smartwatch can process.

Step 4 – The Smartwatch Identifies the Pulse Pattern: The smartwatch processes the optical signal to identify repeating pulse-related changes. This produces a PPG waveform representing variations in blood volume over time. Signal-processing algorithms help reduce unwanted noise caused by movement, ambient light, and other interference.

Step 5 – The Algorithm Calculates Heart Rate: The smartwatch analyzes the timing between detected pulse peaks and estimates the number of heartbeats per minute. For example, if the detected pulses occur approximately every 0.83 seconds, the calculated heart rate is around 72 BPM. The result appears on the smartwatch screen and may also be recorded in a connected fitness or health application.

Understanding the PPG Waveform

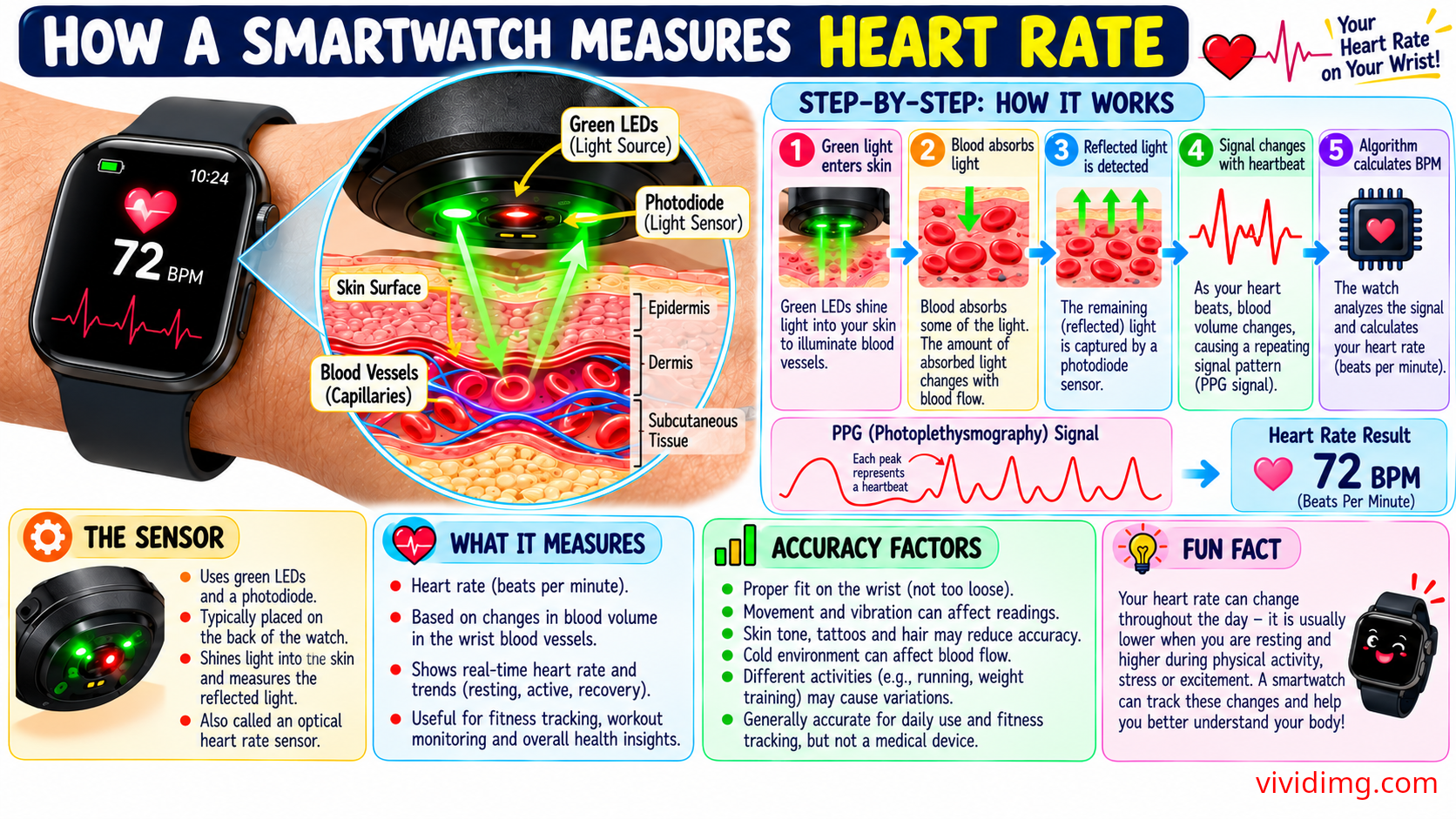

The infographic includes a visual representation of a Photoplethysmography waveform. Each repeating pulse corresponds approximately to a heartbeat-related change in blood volume. By measuring the intervals between successive pulse peaks, the smartwatch estimates heart rate.

A PPG waveform is different from an electrocardiogram (ECG). An ECG measures electrical activity generated by the heart, while PPG measures optical changes associated with blood circulation. Both technologies can provide heart rate information, but they measure different physiological signals.

Smartwatches may also analyze pulse timing to estimate pulse rate variability and, under suitable conditions, derive additional cardiovascular insights. However, optical pulse measurements do not directly replace clinical ECG recordings.

What Does the Smartwatch Heart Rate Sensor Measure?

Current Heart Rate: Displays an estimated pulse rate in beats per minute.

Resting Heart Rate: Tracks heart rate during periods of inactivity and relaxation, providing useful information about cardiovascular fitness trends.

Exercise Heart Rate: Monitors changes during activities such as walking, running, cycling, and workouts, helping users understand exercise intensity.

Heart Rate Trends: Records measurements over time, allowing users to observe changes across days, weeks, and months.

Recovery Heart Rate: On supported devices, tracks how quickly heart rate decreases after exercise, which can provide information about cardiovascular recovery.

Heart Rate Alerts: Some smartwatches can notify users when unusually high or low heart rates are detected under certain conditions. Alert availability and thresholds depend on the device and its settings.

Factors That Affect Smartwatch Heart Rate Accuracy

Watch Fit: A smartwatch should sit securely against the skin without being excessively tight. A loose strap can allow unwanted light to reach the sensor or cause movement between the watch and wrist.

Physical Movement: Running, jumping, weight training, and rapid wrist movements can introduce motion artifacts that interfere with the optical signal.

Skin Characteristics: Skin pigmentation, tattoos, body hair, and differences in tissue characteristics can influence optical measurements. The effects vary between devices and sensor designs.

Cold Temperature: Cold conditions may reduce blood flow near the skin surface, weakening the signal detected by the sensor.

Exercise Type: Activities involving repetitive wrist movements or gripping equipment may produce less reliable readings than activities with steadier wrist positioning.

Sensor Quality and Algorithms: Different smartwatch models use different optical components, sampling methods, motion compensation techniques, and signal-processing algorithms. Therefore, measurement accuracy varies between devices.

Interesting Facts About Smartwatch Heart Rate Monitoring

One fascinating fact is that a smartwatch can estimate heart rate without directly measuring the electrical activity of the heart. Instead, it observes tiny optical changes associated with blood circulation beneath the skin.

Another interesting fact is that the green lights visible underneath many smartwatches are part of a sophisticated optical measurement system. These lights work with photodiodes and digital algorithms to transform changes in reflected light into meaningful heart rate readings.

Heart rate also changes throughout the day. It typically rises during exercise, emotional excitement, or physical stress and often decreases during rest and sleep. Monitoring these changes over time can help users better understand their activity patterns and fitness progress.

Why Is Heart Rate Monitoring Useful?

Smartwatch heart rate monitoring can support fitness training, workout intensity tracking, resting heart rate observations, recovery monitoring, and general awareness of cardiovascular activity. For people beginning a fitness routine, understanding how heart rate responds to exercise can be especially useful when adjusting workout intensity.

However, consumer smartwatch readings are not always accurate, particularly during intense movement or when optical signal quality is poor. A smartwatch should not be treated as a replacement for professional medical assessment. Anyone experiencing chest pain, fainting, severe breathlessness, or other concerning symptoms should seek appropriate medical care regardless of the displayed heart rate.

Who Can Use This Educational Flashcard?

This detailed smartwatch heart rate infographic is ideal for school science projects, biology lessons, human physiology studies, biomedical engineering introductions, electronics education, wearable technology courses, STEM learning, health technology awareness, fitness education, classroom presentations, and self-learning.

The combination of a realistic smartwatch illustration, enlarged skin and capillary diagram, optical LED sensor explanation, numbered measurement process, PPG waveform, and accuracy factors helps learners understand the relationship between human physiology, optical sensing, electronics, and software algorithms.

Conclusion

Understanding how a smartwatch measures heart rate demonstrates how modern wearable technology combines biology, physics, electronics, and computer science. By shining light into the wrist, detecting changes in reflected light, analyzing blood-volume variations, and calculating pulse intervals, a smartwatch can estimate heart rate in real time.

This is Part 1 of the Smartwatch Technology Explained educational flashcard series. The next part explores how a smartwatch estimates blood oxygen saturation (SpO₂) using red and infrared light and how this technology differs from ordinary heart rate monitoring.
