How a Smartwatch measures Blood Oxygen (SpO2)

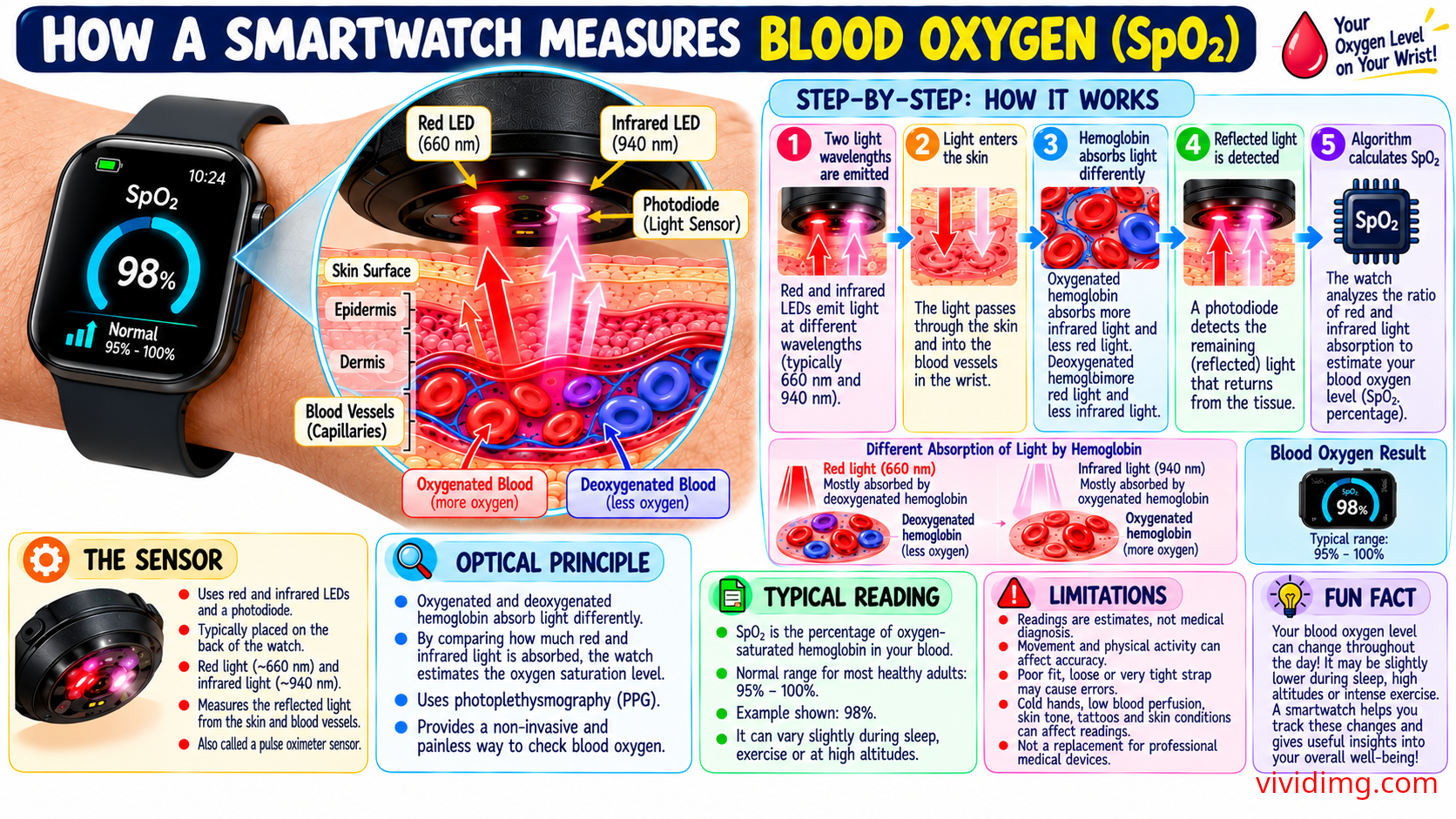

How a Smartwatch Measures Blood Oxygen (SpO2) – Optical Sensor Technology Explained is a detailed educational infographic that explores the fascinating science behind blood oxygen monitoring in modern smartwatches. Have you ever wondered how a smartwatch estimates the oxygen level in your blood simply by shining light into your wrist? This colorful educational flashcard explains how red and infrared LEDs, photodiodes, hemoglobin, blood vessels, and intelligent algorithms work together to estimate blood oxygen saturation without drawing blood. Through realistic smartwatch illustrations, magnified skin diagrams, and a five-step measurement process, this educational resource makes wearable health technology easy to understand for students, teachers, and technology enthusiasts.

What Is Blood Oxygen Saturation (SpO2)?

Blood oxygen saturation, commonly represented as SpO2, indicates the estimated percentage of hemoglobin in arterial blood that is carrying oxygen. Hemoglobin is an iron-containing protein found inside red blood cells. Its primary function is to transport oxygen from the lungs to tissues and organs throughout the body.

When we breathe, oxygen enters the lungs and passes into the bloodstream. Hemoglobin binds with oxygen and carries it through the circulatory system. After oxygen is delivered to body tissues, blood returns to the lungs to collect more oxygen.

For most healthy adults at sea level, a typical oxygen saturation reading is approximately 95% to 100%. However, readings can vary depending on altitude, health conditions, and individual physiology. The smartwatch displayed in this infographic shows an illustrative SpO2 reading of 98%, which falls within the commonly expected range for a healthy adult at sea level.

What Technology Does a Smartwatch Use to Measure Blood Oxygen?

Many smartwatches estimate blood oxygen saturation using an optical technique based on pulse oximetry and photoplethysmography (PPG). The technology relies on the fact that oxygenated and deoxygenated hemoglobin absorb red and infrared light differently.

Unlike traditional fingertip pulse oximeters that commonly measure light transmitted through a finger, wrist-based smartwatches typically analyze light reflected from tissue beneath the watch. This is called reflectance pulse oximetry.

The optical sensor system generally includes red LEDs, infrared LEDs, one or more photodiodes, and signal-processing electronics. The LEDs illuminate the skin, while photodiodes detect returning light. The smartwatch analyzes the changing optical signals to estimate oxygen saturation.

How Does a Smartwatch Measure SpO2? Step-by-Step Explanation

Step 1 – Red and Infrared LEDs Emit Light: The smartwatch activates optical LEDs that emit light at different wavelengths. Red light is commonly around 660 nanometers, while infrared light is commonly around 940 nanometers. These wavelengths are useful because oxygenated and deoxygenated hemoglobin have different light-absorption characteristics.

Step 2 – Light Penetrates the Skin: The emitted light enters the outer skin layers, including the epidermis and dermis, and interacts with tissue and blood vessels beneath the smartwatch. Some light is absorbed, while some is scattered and reflected toward the optical sensor.

Step 3 – Hemoglobin Absorbs Light Differently: Oxygenated hemoglobin generally absorbs more infrared light relative to red light, while deoxygenated hemoglobin absorbs more red light relative to infrared light at the wavelengths commonly used for pulse oximetry. These differences provide the optical information needed to estimate oxygen saturation.

Step 4 – Photodiodes Detect Returning Light: The smartwatch's photodiodes capture reflected light from the wrist. As arterial blood volume changes with each heartbeat, the amount of returning light also changes. The sensor converts these variations into electrical signals for further analysis.

Step 5 – Algorithms Estimate Blood Oxygen Saturation: The smartwatch processes the red and infrared optical signals, compares their pulsatile components, and applies device-specific calibration algorithms to estimate arterial oxygen saturation. The result is displayed as an SpO2 percentage, such as the illustrative 98% shown in the infographic.

Understanding Oxygenated and Deoxygenated Hemoglobin

The infographic illustrates two important forms of hemoglobin involved in oxygen transportation.

Oxygenated Hemoglobin (HbO2): Hemoglobin carrying oxygen is called oxygenated hemoglobin. It is found in higher proportions in oxygen-rich arterial blood and has characteristic absorption properties at red and infrared wavelengths.

Deoxygenated Hemoglobin (Hb): Hemoglobin that is not carrying oxygen is called deoxygenated hemoglobin. It has different optical absorption properties, allowing pulse oximetry systems to distinguish changes in oxygen saturation.

These forms of hemoglobin are not separate types of blood cells. They represent different oxygen-binding states of the same hemoglobin protein. The infographic uses contrasting colors to make this distinction easier to visualize.

Why Are Red and Infrared Lights Used?

Red and infrared wavelengths are particularly useful because the absorption characteristics of oxygenated and deoxygenated hemoglobin differ significantly between them.

Red Light – Approximately 660 nm: Deoxygenated hemoglobin absorbs relatively more red light than oxygenated hemoglobin.

Infrared Light – Approximately 940 nm: Oxygenated hemoglobin absorbs relatively more infrared light than deoxygenated hemoglobin.

By examining how the pulsatile absorption of these wavelengths changes with arterial blood flow, a pulse oximetry system can estimate oxygen saturation. The calculation is more sophisticated than simply measuring the brightness of the reflected light because skin tissue, ambient light, sensor geometry, and other factors also influence the signals.

What Does an SpO2 Reading of 98% Mean?

An SpO2 reading of 98% indicates that the device estimates approximately 98% of the relevant arterial hemoglobin is saturated with oxygen. It does not mean that 98% of the blood itself consists of oxygen.

For many healthy adults at sea level, readings between 95% and 100% are commonly expected. However, this range should not be interpreted as a universal diagnostic threshold. Altitude, underlying medical conditions, and individual circumstances can influence expected oxygen saturation.

Smartwatch SpO2 measurements are estimates and may not match clinical pulse oximeter or arterial blood gas results. Unexpected or repeatedly low readings should be assessed in context rather than interpreted using a smartwatch alone.

Factors That Affect Smartwatch Blood Oxygen Accuracy

Wrist Movement: Movement during measurement can interfere with optical signals and reduce reliability. Remaining still generally improves measurement conditions.

Watch Position and Fit: A loose smartwatch can allow external light to interfere with the sensor, while excessive tightness can affect local circulation. Proper positioning and comfortable contact are important.

Low Blood Perfusion: Cold hands, reduced peripheral circulation, and other conditions that decrease blood flow near the skin can weaken the pulsatile signal.

Skin Pigmentation and Characteristics: Skin pigmentation, tattoos, hair, and tissue characteristics can affect optical measurements. Some pulse oximetry technologies have demonstrated differences in accuracy across skin pigmentation groups.

Sensor Design: The number and arrangement of LEDs, photodiode sensitivity, optical wavelengths, and calibration methods vary across smartwatch manufacturers.

Environmental Conditions: Temperature, ambient lighting, physical activity, and measurement conditions may influence signal quality.

Because of these limitations, consumer smartwatch blood oxygen measurements should be treated as general wellness information unless the specific device has appropriate regulatory authorization for a stated medical purpose.

How Is SpO2 Different from Heart Rate?

Heart rate and SpO2 are different physiological measurements, although both can use optical sensors beneath a smartwatch.

Heart Rate: Estimates the number of heartbeats per minute, commonly using changes in reflected green light associated with blood volume fluctuations.

Blood Oxygen Saturation: Estimates the percentage of arterial hemoglobin carrying oxygen, commonly using red and infrared optical signals.

A smartwatch may display a heart rate of 72 BPM and an SpO2 reading of 98%, but these numbers represent different aspects of cardiovascular and respiratory physiology. A normal heart rate does not automatically indicate normal blood oxygen saturation, and vice versa.

Where Is Smartwatch Blood Oxygen Monitoring Useful?

General Wellness Tracking: Some users monitor oxygen saturation trends as part of their overall wellness routine.

Sleep Monitoring: Supported smartwatches may collect overnight oxygen saturation estimates and display trends. These measurements alone cannot diagnose sleep apnea or other sleep disorders.

High-Altitude Activities: Oxygen saturation can decrease at higher altitudes because atmospheric oxygen pressure is lower. Travelers and hikers may use supported devices to observe trends, while recognizing their accuracy limitations.

Fitness and Recovery Awareness: Some athletes use blood oxygen information alongside heart rate, activity, and sleep data. However, SpO2 alone is not a direct measurement of fitness, endurance, or exercise performance.

Interesting Facts About Blood Oxygen Monitoring

One fascinating fact is that smartwatches can estimate blood oxygen saturation using light rather than collecting a blood sample. This is possible because hemoglobin changes its optical absorption characteristics depending on whether oxygen is attached.

Another interesting fact is that the technology behind modern smartwatch SpO2 monitoring is related to pulse oximetry, which has been used in healthcare for decades. The challenge of measuring oxygen saturation from the wrist is greater because reflected light must be analyzed through complex layers of skin and tissue.

Blood oxygen saturation may change with altitude, respiratory conditions, and other physiological factors. Small fluctuations can also result from normal measurement variability. A smartwatch provides a convenient way to observe estimated trends, but it cannot independently determine the medical cause of a change.

Educational Applications of This Flashcard

This blood oxygen educational infographic is suitable for biology lessons, human physiology studies, biomedical engineering introductions, optical sensor technology education, electronics courses, wearable technology research, STEM classrooms, school science exhibitions, college presentations, nursing foundation learning, digital health awareness, and general science education.

The realistic smartwatch illustration, enlarged skin and blood vessel cross-section, red and infrared LED diagrams, oxygenated and deoxygenated hemoglobin comparison, five-step measurement process, and accuracy information help students understand how biology, physics, electronics, and software algorithms work together in modern wearable devices.

Conclusion

Understanding how a smartwatch measures blood oxygen reveals the science behind a familiar wearable technology feature. By emitting red and infrared light into the wrist, detecting returning light, analyzing heartbeat-related optical variations, and applying calibrated algorithms, compatible smartwatches estimate blood oxygen saturation without invasive procedures.

How a Smartwatch Measures Blood Oxygen (SpO2) – Optical Sensor Technology Explained provides a visual introduction to this process while highlighting the difference between estimated wellness readings and clinical measurements. The infographic is a useful educational resource for anyone interested in understanding the relationship between light, blood circulation, oxygen transportation, and modern smartwatch sensors.

Educational Disclaimer: This content is intended for educational and informational purposes only. Consumer smartwatch SpO2 readings are not a substitute for professional medical evaluation or validated clinical measurements. Do not rely on a smartwatch reading to rule out low blood oxygen or delay medical care when concerning symptoms are present.
